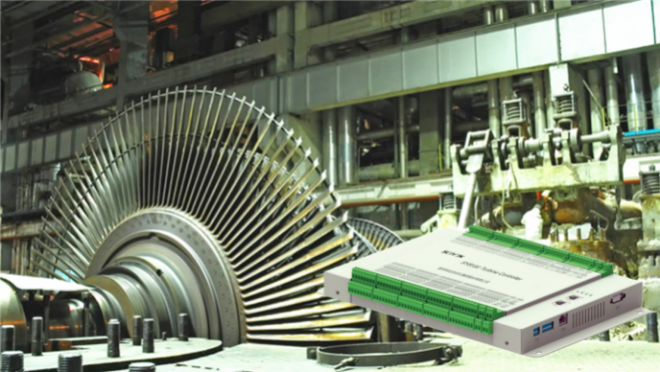

SY8000 General purpose/Marine turbine controller
The turbine controller is based on the high-performance real-time operating system platform, and the core component adopts high-performance, low-power automotive chip, which has the advantages of fast computing speed, excellent performance, strong anti-interference ability, low energy loss and small heat output. The maximum control period of the turbine controller is not more than 20ms, which can meet the requirements of real-time response of turbine machinery. Control strategy, parameters can be flexibly modified to meet the needs of different control objects, with power failure protection function, turbine controller power failure parameters do not lose. Optionally equipped with an operator station or a 10-inch LCD touch screen for graphical monitoring and operation.
Features
Speed control range ：4.3 RPM ~ 20000 RPM, accuracy (±1 RPM).
Steady-state speed inequality rate： 0~6% can be set continuously. The system can achieve the performance index of steady-state adjustment rate (static unequal rate)≤3% and the unit passive loading and unloading (sudden load increase and sudden unloading) transient adjustment rate ≤4%.
Load control range: 0 ~ 115%, accuracy 0.5%.
Speed inequality rate:3 ~ 6% continuously adjustable.
Lift rate control accuracy:1 r/min.
Speed overshoot when dumping rated load:7% rated speed.
Adjustment system delay rate:≤0.2%.
System mean time to failure:MTBF>200000 hours.
System availability:99.9%.
Pumping pressure inequality:0 ~ 10%.
Common-mode rejection ratio & differential mode rejection ratio:≥90dB&≥60dB.
Operating ambient temperature:10℃ ~ 70 ℃.
Storage and transportation temperature:40℃ ~ +85℃.
Relative humidity:5%RH to 95%RH (no condensation).
Test standards:Compliant with UL, CE, RoHS, CCS and other relevant test standards.
