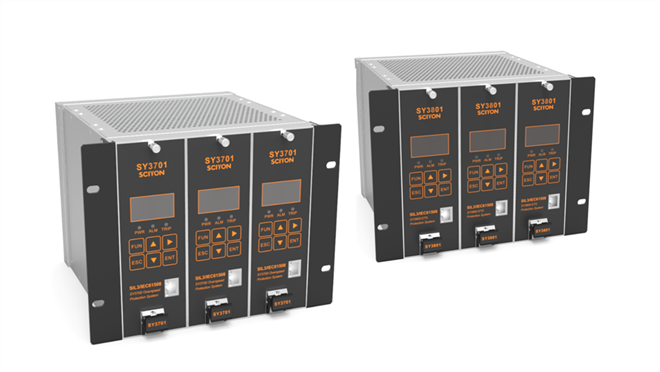

SY3700/3800 triple redundant overspeed/trip protection system
SY3700 is a triple overspeed protection system, which can be used in key applications such as steam turbines, compressors, and motors with functional SIL3 class requirements. The device includes three redundant speed monitoring modules SY3701, each of which uses dual 32-bit RISC processor architecture to achieve low latency, high precision, and high reliability overspeed protection. At present, it is widely used in high speed, no mechanical overspeed breaking device units, large units, etc.
The SY3800 is a triple ETS protection system that can be used in critical applications with functional safety SIL3 level requirements. The system consists of three redundant ETS modules SY3801, each of which uses a dual 32-bit RISC processor architecture for low latency, high precision, and high reliability ETS protection.
Features
SY3700 Triple overspeed protection system
Highly flexible, support rich control logic configuration
Highly reliable safety relay in output loop (according to EN50205)
Triple redundant architecture with 2oo3 voting logic
Supports hot swap, and the module can be replaced online
Compatible with eddy current sensor and magnetoresistive sensor
Supports two sets of triple redundant ETS input channels
Supports auxiliary functions such as parameter synchronization, facilitating user operation and configuration
Supports standard Modbus TCP/RTU communication protocols
Supports manual and periodic self-diagnosis
Support rights management
OLED display, support Chinese/English menu
SY3800 Triple ETS protection system
Highly flexible, support rich control logic configuration
Highly reliable safety relay in output loop (according to EN50205)
Triple redundant architecture with 2oo3 voting logic
Supports hot swap, and the module can be replaced online
Supports 16 sets of ETS signals, and the redundant logic of each set of signals can be configured independently
Supports auxiliary functions such as parameter synchronization, facilitating user operation and configuration
Supports standard Modbus TCP/RTU communication protocols
Supports manual and periodic self-diagnosis
Support rights management
OLED display, support Chinese/English menu
