Intelligent diagnostic system for rotating machinery equipment
Rotating machinery fault diagnosis system is a set of vibration data acquisition, process data acquisition, condition monitoring, online analysis in one, the integration of sensors, transient signal high-speed acquisition and processing, computer software technology of high-tech, intelligent products, for the unit safety to establish a set of strict online monitoring system. The system can provide comprehensive and professional vibration monitoring and diagnosis services for steam turbines, gas turbines, pumps and fans, including continuous process vibration data acquisition, spectrum analysis, envelope analysis, historical data management, trend analysis, sample analysis and functional map printing functions. At the same time, in cooperation with the National Engineering Research Center of thermal power Unit Vibration of Southeast University, the expert knowledge base of transfer diagnosis has been developed, which can diagnose a variety of faults including friction, unbalance, rotor thermal bending, oil film oscillation, steam flow excitation, insufficient support stiffness, etc., to provide professional diagnosis results for unit faults in time, and effectively reduce unit damage caused by vibration faults.
Features
Rotating machinery monitoring and protection system

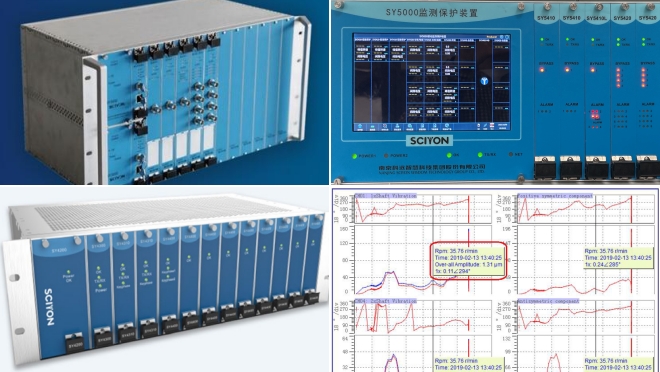

Including SY3000 rotating machinery monitoring protection device, SY5000 rotating machinery monitoring protection device, based on NT6000 system card type monitoring module, SY series sensors
Vibration acquisition system
The system includes SY4000 main engine vibration collector and SY4900 auxiliary engine vibration collector
Monitoring and analysis software iDS3000
Used for turbine generator set equipment vibration inspection test, start-stop test, frequency test, continuous process monitoring and vibration data analysis, providing continuous process vibration data acquisition, sample collection, frequency testing and field spectrum analysis, envelope analysis and other functions. At the same time, it provides powerful online monitoring and analysis, historical data management, trend analysis, sample analysis, on-site dynamic balance and data chart printing means, which is convenient for equipment status assessment and fault analysis and processing
Inference diagnostic system
In cooperation with the National Engineering Research Center of Thermal power Unit Vibration of Southeast University, the expert knowledge base of turning machine diagnosis has been developed, which can diagnose various faults including friction, unbalance, rotor thermal bending, oil film oscillation, steam flow excitation, insufficient support stiffness, etc., and provide professional diagnosis results for unit faults in time, effectively reducing unit damage caused by vibration faults
